车轮型开扣式护线环 Push Snap-in Grommet

彩图宝库宝典



材质:PA66
防火等级:UL 94V-2/ V0
颜色:黑色/白色
操作温度:-40°C to 85°C
Unit: mm
彩图宝库宝典

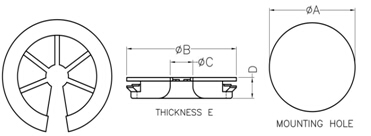

Part No.
安装孔径
A
线缆直径
C
PSGC-1911
19.0~19.1
21.8
12.7
9.9
PSGC-2212
22.2~22.4
23.8
14.3
11.5
PSGC-2612
25.4~25.5
27.0
19.0
11.5
PSGC-2812
27.8~28.0
29.5
20.7
11.5


~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

彩图宝库宝典
彩图宝库宝典

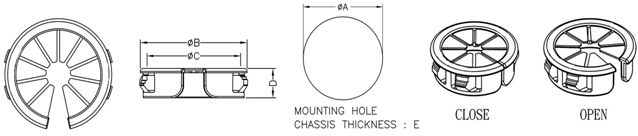

Part No.
A
B
C
D
E
PSGC-1910
19.0
22.6
3.5
9.8
0.8~3.2
PSGC-2505
25.4
29.0
6.0
5.3
0.8~1.0
PSGC-2511
25.4
29.0
6.0
11.4
0.8~3.0


~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

彩图宝库宝典



Part No.
A
B
C
D
E
PSGC-1310
12.7
15.3
10.3
9.8
0.8~3.3
PSGC-1614
15.9
18.8
13.8
10.3
PSGC-2219
22.2
25.5
18.5
10.3
PSGC-2812
27.8
31.5
25.5
7.0
0.6~1.2
PSGC-2829
31.8
38.7
29.3
10.3
0.8~3.3
PSGC-2831
34.9
39.2
31.2
10.3
PSGC-3833
38.1
42.6
32.6
10.7
彩图宝库宝典
Part No.
PSGC-2218
