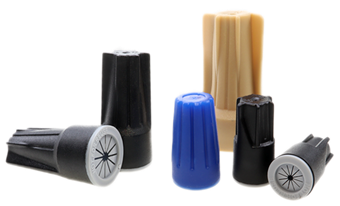

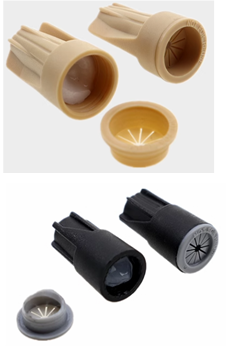

螺旋式防水压线帽 Spiral Waterproof Pressure Cap
 |
|
|
|
|
|
|
Part No.
|
KS-S1
|
|
Max. Voltage
|
600V max. building wire (1000V max. signs or luminaries)
|
|
Connector Size
|
Φ12mm x 23.8mm
|
|
Wire Type
|
Copper/Copper
|
|
Wire Range
|
Min #22/Max #12 (AWG)
|
|
Temperature Rating
|
105°C (221°F)
|
|
Silicone Sealant
|
-45°F to 400°F
|
|
|
Part No.
|
KS-S2
|
|
Max. Voltage
|
600V (1000V in fixtures and signs)
|
|
Connector Size
|
Φ14mm x 24mm
|
|
Wire Type
|
Copper/Copper
|
|
Wire Range
|
Min #24/Max #12 (AWG)
|
|
Temperature Rating
|
105°C (221°F)
|
|
Silicone Sealant
|
-45°F to 400°F
|
|
|
|
|
|
Part No.
|
KS-S3
|
|
Max. Voltage
|
600V (1000V in fixtures and signs)
|
|
Connector Size
|
Φ20.6mm x41.2mm
|
|
Wire Type
|
Copper/Copper
|
|
Wire Range
|
Min #22/Max #6 (AWG)
|
|
Temperature Rating
|
105°C (221°F)
|
|
Silicone Sealant
|
-45°F to 400°F
|
|
|
Part No.
|
KS-S11
|
|
Max. Voltage
|
600V max. building wire (1000V max. signs or luminaries)
|
|
Connector Size
|
Φ12mm x 30mm
|
|
Wire Type
|
Copper/Copper
|
|
Wire Range
|
Min #24/Max #12 (AWG)
|
|
Temperature Rating
|
105°C (221°F)
|
|
Silicone Sealant
|
-45°F to 400°F
|
|
|
|
|
|
Part No.
|
KS-S30
|
|
Max. Voltage
|
600V (1000V in fixtures and signs)
|
|
Connector Size
|
Φ17.2mm x 34.5mm
|
|
Wire Type
|
Copper/Copper
|
|
Wire Range
|
Min #22/Max #8 (AWG)
|
|
Temperature Rating
|
105°C (221°F)
|
|
Silicone Sealant
|
-45°F to 400°F
|
|
