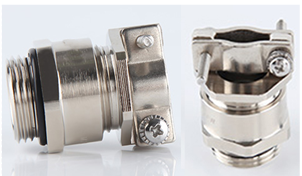

平口电缆接头 Brass Cable Gland

彩图宝库宝典



材料: 外部金属为黄铜镀镍,
密封件材料为改性橡胶
温度: -40℃~100℃,短时达到120℃
防护等级: 在规定的卡口范围内,防护等级可以达到IP68
Unit:mm
Part No.
卡口范围
M
L
H
SW3/SW4
MPK-MCG-M12
6~8
M12×1.5
6.0
25.0
17/14
MPK-MCG-M16-H
6~8
M16×1.5
7.0
27.0
20/18
MPK-MCG-M16
8~10
M16×1.5
7.0
27.0
20/18
MPK-MCG-M18-TH
6~8
M18×1.5
7.0
26.0
17/20
MPK-MCG-M18-H
8~10
M18×1.5
7.0
27.0
20/20
MPK-MCG-M18
10~12
M18×1.5
7.0
28.0
22/20
MPK-MCG-M20
12~14
M20×1.5
7.0
29.5
24/24
MPK-MCG-M25
14~18
M25×1.5
7.0
41.0
32/34
MPK-MCG-M32
17~23
M32×1.5
8.0
41.5
38/40
MPK-MCG-M36
22~27
M36×2.0
8.0
43.5
45/46
MPK-MCG-M40
26~33
M40×1.5
9.0
46.0
50/52
MPK-MCG-M50
32~41
M50×1.5
9.0
47.0
58/60
MPK-MCG-M56
40~49
M56×2.0
9.0
50.0
65/70
MPK-MCG-M63
48~57
M63×1.5
10.0
50.0
75/80
MPK-MCG-PG7
6~8
PG7
6.0
25.0
17/14
MPK-MCG-PG9
6~8
PG9
7.0
26.0
17/17
MPK-MCG-PG9
8~10
PG9
7.0
27.0
20/17
MPK-MCG-PG11
6~8
PG11
7.0
26.0
17/21
MPK-MCG-PG11
8~10
PG11
7.0
27.0
20/20
MPK-MCG-PG11
10~12
PG11
7.0
28.0
22/20
MPK-MCG-PG13.5
12~14
PG13.5
7.0
29.5
24/24
