两头水滴形电路板间隔柱 Teardrop Head Dual Locking Board Support Post

彩图宝库宝典



彩图宝库宝典
材质:PA66
防火等级:UL 94V-2/ V-0
颜色:自然色
操作温度:-40°C to 85°C
Unit: mm
Part No.
A

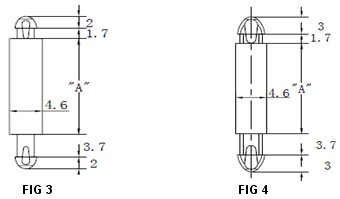

FIG 1
FIG 2
FIG 3
FIG 4
±0.4mm
TDLP-102
TDLP-202
TDLP-302
TDLP-402
2.0
TDLP-103
TDLP-203
TDLP-303
TDLP-403
3.0
TDLP-103L

3.5
TDLP-104
TDLP-204
TDLP-304
TDLP-404
4.0
TDLP-105
TDLP-205
TDLP-305
TDLP-405
5.0
TDLP-106
TDLP-206
TDLP-306
TDLP-406
6.0
TDLP-107
TDLP-207
TDLP-307
TDLP-407
7.0
TDLP-108
TDLP-208
TDLP-308
TDLP-408
8.0
TDLP-108L

8.5
TDLP-109
TDLP-209
TDLP-309
TDLP-409
9.0
TDLP-110
TDLP-210
TDLP-310
TDLP-410
10.0
TDLP-112
TDLP-212
TDLP-312
TDLP-412
12.0
TDLP-112L

12.7
TDLP-114
TDLP-214
TDLP-314
TDLP-414
14.0
TDLP-116
TDLP-216
TDLP-316
TDLP-416
16.0
TDLP-118
TDLP-218
TDLP-318
TDLP-418
18.0
TDLP-120
TDLP-220
TDLP-320
TDLP-420
20.0
TDLP-122
TDLP-222
TDLP-322
TDLP-422
22.0



彩图宝库宝典
FIG
安装孔径
板厚
顶部
底部
顶部
底部
1
2.5±0.05mm
1.6mm
2
3.5±0.05mm
3
2.5±0.05mm
1.6mm
3.6mm
4
3.5±0.05mm
