Nylon Cable Gland
彩图宝库宝典

 彩图宝库宝典

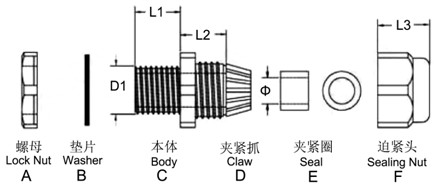

MATERIAL:A,C,D,F--NYLON66 ; B,E--NBR        FLAME CLASS：UL94 V-2       TEMPERATURE：-40°C to 85°C
Protection Degree:Useing suitable O-sealings within the clamping range,Its protection degree can reach IP67
COLOR:WHITE--W,BLACK--BK    Unit：mm


Part No.
Thread
Cable Range
Thread O.D
Panel Mounting Hole
Thread Length
Joint Length
Spanner Size
Φ
D1
L1
L2+L3
A&F
NCG-PG7
PG7
3~6.5
12.5
12.5~12.8
8
22
18/16
NCG-PG7L
15
NCG-PG9
PG9
4~8
15.2
15.2~15.8
8
26
22/19
NCG-PG9L
15
NCG-PG11
PG11
5~10
18.6
18.6~18.9
8
27
24/22
NCG-PG11L
15
NCG-PG13.5
PG13.5
6~12
20.4
20.4~20.7
9
28
27/24
NCG-PG13.5L
15
NCG-PG16
PG16
10~14
22.5
22.5~22.8
10
30
30/27
NCG-PG16L
15
NCG-PG19
PG19
12~15
24.1
24.1~24.5
10
30
30/27
NCG-PG21
PG21
13~18
28.3
28.3~28.7
10
35
36/33
NCG-PG21L
15
NCG-PG25
PG25
16~21
30.1
30.1~30.3
11
34
37/36
NCG-PG29
PG29
18~25
37.0
37.0~37.4
12
40
46/42
NCG-PG29L
18
NCG-PG36
PG36
22~32
47.0
47.0~47.4
14
48
59/54
NCG-PG36L
18
NCG-PG42
PG42
32~38
54.0
54.0~54.4
14
49
64/61
NCG-PG42L
18
49
NCG-PG48
PG48
37~44
59.3
59.3~59.7
14
50
69/65
NCG-PG48L
18
NCG-PG63
PG63
42~50
70.2
70.3~70.7
27
84
75/72
